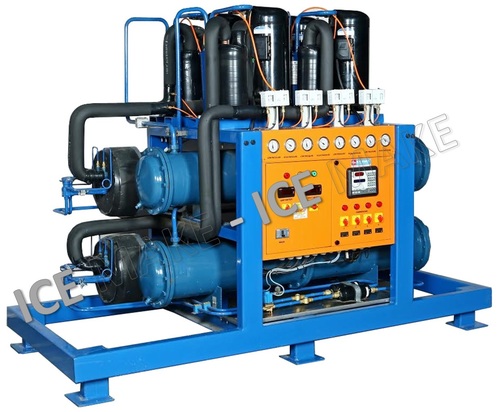

Water Cooled Chiller

Water Cooled Chiller
Water Cooled Chiller
Product Code : 27
Brand Name : ICE MAKE
Product Description
With the assistance of our highly experience team of engineers, we are able to introduce a broad array of Water Chiller. This chiller is developed using quality Components. Also, provided chiller is comprised with certified components that add high durability feature to the machine. Clients can get the fastest chiller from us at industry leading rates.

Features:
  • Less maintenance
  • high performance
  • Reliable Operation
Applications:
  • Chemical plants
  • Steel plants
  • Plastic Industries
  • Machinery and parts companies
  • Pharma Industries
  • Process Industries

Ice Make is a leading refrigeration company dealing with the various kind of industrial chillers for end to end solutions. We are committed to provide best solution to customer. Which fulfill their needs. We have a wids range of air cooled & water cooled chillers. We have an ISO9001 ceritifed production unit. The range of our chillers 5 Tr. To 200 Tr.

Ice Make Chillers are ideal for various industries like pharmaceuticals, Plastics, Food & Beverages. Dairy & Milk processing, Chemical industries etc.

Controller Options

  • Microprocessor Based
  • PLC Bases (Apllication for screw chiller)

Microprocessor Based: The LCD Screen shows description of the controller parameters and any other information concerning the controlled variables

Display size: 2 Rows x 16 characters

Character size: 5.65 x 2.96 mm

Liquid Crystal display (LCD)

Controller has following (Analog input (Probe)

Controller has following (Digital Outputs (Relay)

COND IN- Indicates condenser inlet temperature

Chiller pump ON/OFF

COND OUT- Indicates condenser Outlet temperature

Compressor 1 ON/ OFF

Water IN- Senses water (chiller) inlet temperature

Condenser Fan 1 ON/OFF

Water Out- Senses water (chiller) Outlet temperature

Liquid SV1 for pump Down 1

Anti Freeze- Used as an internal Anti freeze control

Compressor 2 ON / OFF

-

Liquid SV2 for pump Down 2

-

Alarm

PLC Based Controller:

Its programmable logic controller that is fully compatible (hardware and software), which includes programmable controller user terminals, gateways, communication devices and remote management devices

Controller has following Analog & Digital input:

Suction pressure Discharge pressure chiller inlet, chiller outlet condenser inlet, Condenser Flow Condenser pump overload chiller pump overload.

Self identification functions:

  • All digital inputs & outputs such as chiller inlet, chiller outlet, condenser inlet, Condenser outlet, current voltage, Low water flows in conderser etc.
  • Trouble shooting idertification function: Show history of trips with date & time as well as cause of trips.

Key Feature:

  • Availability of Customized solution
  • Eco Friendly Refrigerant
  • Wide Range of water / Glycol temp. (+15ºC to -25ºC)
  • Closed circiut operation
  • Modular Design
  • Easy operation & less Maintenance
  • Compact in size

Following Compressor

Scroll compressor

Make: Emerson/ copeland & Danfoss or Equivalent

Reciprocating Compressor

Type: semi Hermetic & Hermetic sealed

Serew Compressor

Make: Frascold & Bitzer or Equivalent

Dimple plate in tank type chiller

Evaporator: Dimple plate type (S.S Plate)

  • Condenser: Air cooled/ water cooled
  • Water temperature range: +2 ºC to +4 ºC
  • Application: Food & Bakery industry
  • Tank M.O.C: Inner S.S 304 & Outer G.I.P.P./S.S 304
  • Insulation: PUF
