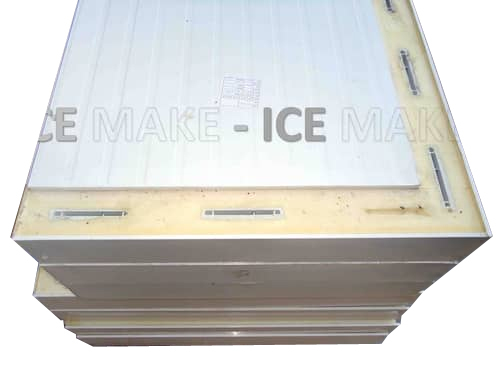

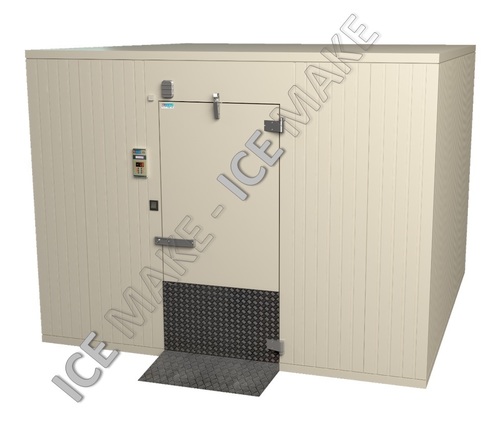

Cold Room & PUF Panel

Cold Room & PUF Panel
Cold Room & PUF Panel
Product Code : CRP01
Brand Name : ICE MAKE
Product Description

Backed by the excellent support of our highly skilled workforce, we are considered as one of the leading manufacturers and exporters of Cold Room & PUF Panel. The prime application of these rooms is in food industries, confectioneries and chemical industries. Specially engineered with PUF panel, these rooms are suitable for the storage of ice-cream, dairy products, bakery items, sweets, chemicals, pharmaceuticals, frozen food, fast-food, vegetables, sea food, dry fruits, mineral water and horticulture products. We make available this Cold Room & PUF Panel to clients in a wide range of height and width dimensions. At all joints, there are PVC gaskets & camlocks for air tight storage of products.

Key Features

  • The cold room consumes less power
  • Built with certified raw materials and components, the equipments requires low maintenance
  • FRP profiles, replaceable gaskets and imported hardware are used in the construction

Accessories

Sliding Door

  • Opening size
  • Width : 1000/ 1200/ 1500/ 1800mm
  • Height: 2100 to 3000mm
  • Thickness: 80mm
  • Panel surface material : Both side GIPP or SS as per requirement

Hatch Door

  • Opening size (WxH): 20”X20”, 24”x24”, 30”X30”
  • Different size hatch door with heavy frame for easy material movement in high turnover ice cream and dairy industries.

Pressure Ventilator

  • Tru-action pressure ventilater with/without heater to balance pressure and vacuum inside cold room.

View Port

  • 12" X 12" View port with three layer argon filled toughen glass which can be visible upto 20"C inside the cold room.

Strip Curtain

  • Semi transparent PVC strip curtain for negative temperature application to prevent heat loss and ultimately the power.

Technical specification

THICKNESS : 60,80, 100,125 & 150 mm

SURFACE MATERIAL Gl Pre-Painted Sheet, S.S. Sheet (Grade 304/316 & Surface Finish 2B & Mate), GI Plain Sheet, Plain Galvanize Iron. (Inside & Outside different metal can be placed as per your requirement).

FLOOR :

  • For Kota stone or Concrete floor, Puf Slab with both side tar felt coated.
  • For Kota stone or Concrete floor, both side metal surface panel in which each side fits with cam
  • lock and prevent temperature loss.
  • Aluminium Chequered Plate with Marine Ply.
  • FRP Cladding on floor

DOOR :

  • Flush Type : Swing Door with FRP Profile, Imported Hardware, Push Type Gasket & replaceable heater for easy door operation & long life.
  • Opening Size : 24"x72",30"x72",34"x78",46"x84" (Door Opening W x H)
  • Over Lap Type: Teak wood frame with metal covering by using heavy duty hardware for better strength
  • Size : 45"x84",49"x84",54"x84", 60"X90" (Door Opening W x H)

ROOM SIZE :

  • Length & Width Minimum 1.78 mt and Bigger size 0.146 mt in multiples. As per requirement
  • Standard Height for 60 mm thickness 2.47 mt, 80 mm-2.51 mt,100 mm-2.55 mt, 125 mm-2.60 mt, 150 mm-2.65 mt. Single Panel Height upto 12 mt and above as per your requirement.

Technical specification of puf panel

Parameters

Description

Average PUF Density

40 ± 2 Kg/ cu.mtr/ m³

PUF Blowing Agent

141B (CFC free)

Insulation Material

Polyurethane foam

Temperature range

+90°C to -60°C

Penal Type

Discontinuous type with cam lock

M.O.C. Of Cam Locks

Cam locks body material HIPS and male latch is made of nylon Glass field with GI sheet reinforcement. Cam-lock panel joints easy assembly and leakage resistant, panel-to-panel joints.

Type Of Panel Joints

Tongue & Groove Joint with Cam lock and all side rubber gaskets

Corner Panel Available

12” X 12” X 162”(Maximum Length)

Length of wall & ceiling panel

2032 mm to 12000 mm 80” to 472.5” inch

Ceiling Suspension items with specs

MS bolt with thermal breaking cap. 4 mm thickness X 80 X 80 mm Aluminum/MS washer plate for load distribution Anchor bolt (MS) hanging bolt with 40 mm washer 2.0 mm thickness Sealing to panel MS road Clamp with an insulated crown.

Closed cell content

90 to 95%

Vapour Permeability

5.5mg/PASM

Water Absorption

Less than 2%

Fire Resistance

FR Grade (Fire Resistance Grade)

Compressive Strength at 10% Deformation

0.21 N/ sq.mm (For PUF only)

Tensile Strength

0.58 N/ sq.mm (For PUF only)

Adhesive Strength(Foam to Sheet)

2.9kg/sq.mtr

Adhesive Strength (Foam to Sheet)

2.9 kg /sq.mtr

Panel Facing Availability

With Rib or plain on Demand (Ribs are provided for more strength)

Wall & Celling Panel Facing material

Pre Painted Galvanised sheet, Thickness 0.50mm
Plain Galvanised sheet, Thickness 0.50mm
S.S. sheet, Grade 316, 0.50mm finish 2B/ 0.6mm mate No.4

S.S sheet, Grade 304, 0.50mm finish 2B/ 0.6mm mate No.4

Floor Panel Facing Material

• PUF Panel with both side tarfelt sheet.
• PUF Panel with both side 0.5mm GIPP sheet.
• PUF Panel with outside GIPP sheet, inside 9 mm thick marine ply with 2 mm thick Aluminium Chequered Plate

Specification for Colour Coating

A. RAL No. : 9002/9003 or it's nearest
B. Indian Standard code Colour Coating : IS 14246 Galvanizing : IS 277 Base Metal : IS 513 C. Organic Coating : Type RMP (Polyester)
D. Zinc Coating : 120 GSM
E. Top Primer (Thickness in micron 'μ') : 5 +/- 1 μ
F. Top Coat (Thickness in micron 'μ') : 20 +/- 1 μ
G. Back Primer (Thickness in micron 'μ') : 4 +/- 1 μ
H. Back Coat (Thickness in micron 'μ') : 4 +/- 1 μ
I. Guard Film (Thickness in micron 'μ') : 40 +/- 3 μ
J. Salt Spray Test /Humidity Test : 750 hrs. /1000 hrs.

Perfect Panel Configuration

Can be obtained in different dimensions, height and sizes - Door Leaf, Corners & Ceilings, Wall, Floor, Tee Walls and Door Frame. Camlocks and PVC gaskets are fitted on all joints to give them a perfect finish.

PUF (Poly Urethen Foam)

We have imported world class CANNON high pressure foaming machine from Italy. These help in manufacturing of high density 40 kg / m3 Puf insulation, which ensure superior insulating efficiency, constant celstructure or density. These can be customized as per your requirements.

Ceiling Supported Clamp

Cold room of bigger size than 6 meter in length & width, give support and strength to the ceiling panel. Rooms can be made in bigger sizes as per the demand of our clients.

Zig Zag Joint

Note: We can make cold room with zig zag joints and height larger than 6 meters. These rooms can be customized, according to our clients' requirements.
