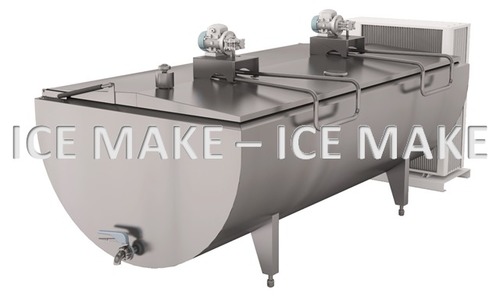

Bulk Milk Chiller

Bulk Milk Chiller
Bulk Milk Chiller
Product Code : BMC09
Brand Name : ICE MAKE
Product Description

We have acquired the acumen and experience to manufacture, supply and export Bulk Milk Chiller. These products are used in dairies, food processing, milk processing and small & medium scale industries. Owing to their capacity of cooling milk within short time of milking, these products protect bacterial build-up in the final product. Our clients appreciate these products for their high durability, sturdy construction and high strength. Bulk Milk Chiller is packed in special packaging material in order to ensure its non-damage transit.

Specifications:

Sr.
No.
Model Ltr. Size Comp. 1 Ph. 3 Ph. Pull Down Time 40 C Nos. of Sturer Nos. of Door Power
Cons.
/Hr.
Outer Inner
1 MTI-200 200 36 x 26 x 53 30 x 20 x 24 KCJ 515     X 2.30 Hr X 1 1.15
2 MTI-300 300 33 x 33 x 56 27 x 27 x 27 CR - 22     X 2.30 Hr 1 1 2.1
3 MTI-500 400 44 x 33 x 56 38 x 27 x 27 CR - 22
X 3.10 Hr 1 1 2.1
4 MTI-500 500 53 x 33 x 56 47 x 27 x 27 CR - 30

2.50 Hr 1 2 2.7
5 MTI-600 600 62 x 33 x 56 56 x 27 x 27 CR - 36

2.50 Hr 1 2 3.15
6 MTI-700 700 70 x 33 x 56 64 x 27 x 27 CR - 36

3.15 Hr 1 2 3.15
7 MTI-800 800 79 x 33 x 56 73 x 27 x 27 CR - 42

3.10 Hr 1 2 4.15
8 MTI-900 900 88 x 33 x 56 82 x 27 x 27 CR - 42

3.30 Hr 2 3 4.15
9 MTI-100 1000 99 x 33 x 56 93 x 27 x 27 CR - 42

3.50 Hr 2 3 4.15
10 MTI-1100 1100 108 x 33 x 56 102 x 27 x 27 CR - 42

4.15 Hr 2 3 4.5
11 MTI-1200 1200 92 x 36 x 59 86 x 30 x 30 CR - 30 (2 Nos.)

3.30 Hr 2 3 5.4
12 MTI-1300 1300 99 x 36 x 59 93 x 30 x 30 MT 64 X
3.20 Hr 2 3 5.6
13 MTI-1400 1400 106 x 36 x 59 100 x 30 x 30 MT 73 X
3.15 Hr 2 3 6.0
14 MTI-1500 1500 113 x 36 x 59 107 x 30 x 30 MT 73 X
3.30 Hr 2 3 6.0
  • Temperature :  2°C to 8°C
  • Application for :  Loose Milk Storage
  • Capacity :  200 Ltr. To 1500 Ltr.

Body Type :

 Body Material :

  • G.I. Pre Painted Sheet, Colour White, Thickness 0.55 mm
  • S.S.Sheet, Grade 202, 430, 304, 316, Thickness 0.50 to 1.2 mm, Finish 2 B (original). Mirror, Mate
  • Base Frame M.S. or S.S. Angel, with S.S. leg or castor wheel
  •  Salient Features

    • Outer, Top & Door S.S. 202-0.55mm, Inner S.S.304-0.55mm.
    • Top, Door & Outer S.S.304-0.55mm, Inner S.S.316-1.2mm.

    Technical Specification

    Insulation :

    • Thickness 60 to 75mm, InsulationPoly Urethen Foam (PUF) CFC free. Density 38 Kg /M3,+/-2 kg, all Body PUF pouring by automatic Imported make (SAIP) machines

    Compressor :

    • Hermetic type with suction gas cooled motor, equipped with over load protector. We provide world's best compressor Copeland, Danfoss, Tecumseh

    Fan Motor :

    • Propeller type (Quite) we choose only top brand like EIco, EBM, AUE, ELCO

    Refrigerant :

    • R-134a, R-404 CFC free & R-22

    Power Supply :

    • 230 Volts, 10%±, 50Hz, I Ph/440 Volts 10%±, 50 Hz, 3 Ph

    Salient Features

    • Designed to suit local conditions made tough compared to other local & imported / Standard manufacturers.
    • All appliances can be made as per client's specification on demand.
    • Our appliances are tested for well balance system design, energy, efficient, long lasting performance and maintenance free.
